GRANULATORS FOR ELECTRICAL AND ELECTRONIC CABLES
The new compact granulators of the series SINCRO MILL allow to process simultaneously rigid copper cables and very thin ones, without the necessity of pre-selection and they are easy to maintain as ever.
Despite the compactness and the low energetic consumption of the machines, The Sincro Mill is a fully integrated system that includes a blade granulator, a zig-zag separator, a turbo and a separating table to ensure a perfect separation at the end of the cycle.
Thick metals coming from plugs, connectors, rigid copper wires, are separated directly from the zig-zag, while very thin cables are further reduced into the turbo, improving the quality of separation and reducing the loss of metals in the plastic to a value very close to zero.
It can be combined to the Guidetti Pre-shredder, PMG series.
- With manual and automatic feeding
- Conform to CE rules
- Prearranged for connection with optional equipment
- Operators control station with programmable PLC
- Easy maintenance
The advantages and the innovations of this series of machines, are:
- Dust emissions in the atmosphere comply with current legislation
- Reduced acoustic pollution (definitely lower than other machines of this kind)
- Lower energy consumption per ton of grinded cable
- Lower cost of maintenance per ton of grinded cable
- Constant production with purity rate of metals and plastics over 99.9%
| Lunghezza | Larghezza | Altezza | Peso | Potenza | Produzione | |
|---|---|---|---|---|---|---|
| SINCRO MILL 215 | 2300 mm 90,6” | 1458 mm 57,4” | 3084 mm 121,4” | 970 kg 2138 lb | 12,5 kw 16,8 HP | 80-120 kg/h |
| SINCRO MILL 315 | 2316 mm 91,2” | 1475 mm 58,1” | 3100 mm 122,0” | 1200 kg 2646 lb | 20,0 kw 26,8 HP | 130-180 kg/h |
| SINCRO MILL 415 | 3410 mm 134,3” | 1472 mm 58,0” | 3637 mm 143,2” | 2500 kg 5512 lb | 38,0 kw 50,9 HP | 250-330 kg/h |

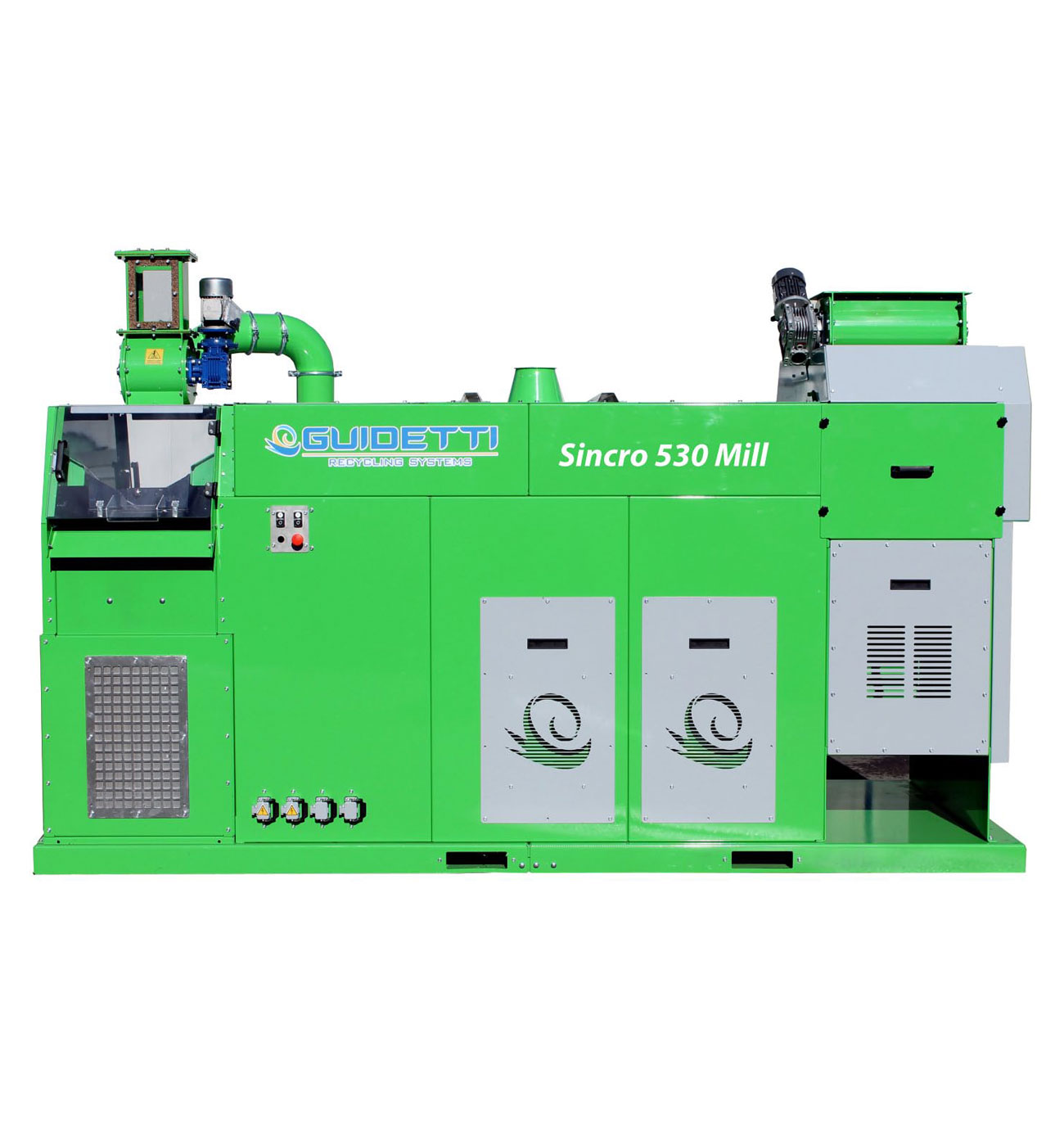

| SINCRO MILL 530 | 3410 mm 134,3” | 1515 mm 59,6” | 4395 mm 173,0” | 2700 kg 5952 lb | 53,0 kw 71,0 HP | 450-600 kg/h |
| SINCRO MILL 950 | 4459 mm | 1350 mm | 2338 mm | 5500 kg | 99,5 kW | 800-900 kg/h |
Visualizza Tabella
| Lunghezza | Larghezza | Altezza | Peso | Potenza | Produzione | |
|---|---|---|---|---|---|---|
| SINCRO MILL 215 | 2300 mm 90,6” | 1458 mm 57,4” | 3084 mm 121,4” | 970 kg 2138 lb | 12,5 kw 16,8 HP | 80-120 kg/h |
| SINCRO MILL 315 | 2316 mm 91,2” | 1475 mm 58,1” | 3100 mm 122,0” | 1200 kg 2646 lb | 20,0 kw 26,8 HP | 130-180 kg/h |
| SINCRO MILL 415 | 3410 mm 134,3” | 1472 mm 58,0” | 3637 mm 143,2” | 2500 kg 5512 lb | 38,0 kw 50,9 HP | 250-330 kg/h |
| SINCRO MILL 530 | 3410 mm 134,3” | 1515 mm 59,6” | 4395 mm 173,0” | 2700 kg 5952 lb | 53,0 kw 71,0 HP | 450-600 kg/h |
